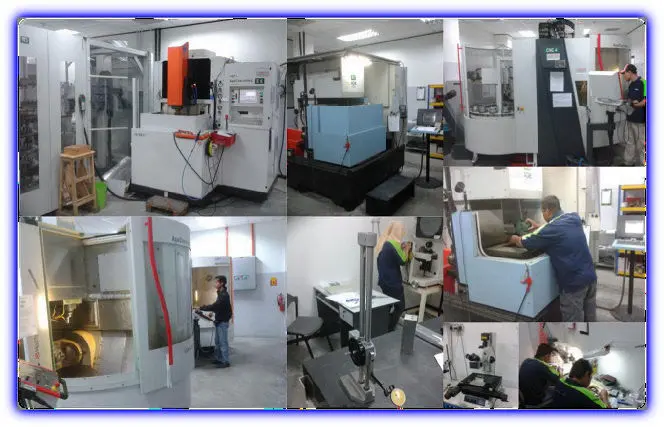

Manufacturing Capabilities
Machine Model
Machine Detail
CHARMILLES ROBOFORM 35P With EROWA ROBOT

Max. Work piece Dimensions

X x Y x Z ( 780 x 530 x 300 ) mm

Travel

X x Y x Z ( 350 x 250 x 300 ) mm

Accuracy
Mean positional variation = 0.003 mm

Resolution = 0.001 mm
Surface Finish
Ra. 0.1 m
No. of Unit
3

Machine Model


Machine Detail

AGIE CHARMILLES EDM  With EROWA ROBOT
Max. Work piece Dimensions
X x Y ( 320 x 320 ) mm
Max. Work piece Dimensions (Without Robot)
X x Y ( 560 x 485) mm
Travel
X x Y x Z ( 350 x 250 x 300 ) mm
Accuracy
Mean positional variation = 0.003 mm
Resolution = 0.001 mm
Surface Finish
Ra. 0.1
Machine Model
Machine Detail
AGIE COMPACT 1
Max. Work piece Dimensions
X x Y x Z ( 600 x 450 x 160) mm
Travel
X x Y x Z ( 250 x 160 x 250 ) mm

Accuracy
Mean positional variation = 0.003 mm

Resolution = 0.001 mm


Surface Finish

Ra. 0.2 m
Machine Model
Machine Detail
AGIE COMPACT 2



Max. Work piece Dimensions

X x Y x Z ( 780 x 530 x 300 ) mm

Travel

X x Y x Z ( 300 x 250 x 300 ) mm

Accuracy
Mean positional variation = 0.003 mm
Resolution = 0.001 mm
Surface Finish
Ra. 0.2 m
Machine Model
Machine Detail
MIKRON HSM 400U
(5 AXIS)
Max. Work piece Dimensions
X x Y x Z ( 600 x 500 x 300 ) mm
Travel
X x Y x Z ( 400 x 450 x 350 ) mm
Accuracy
Mean positional variation = 0.003 mm

Resolution = 0.001 mm
Spindle Speed
42,000 RPM
Machine Model
Machine Detail
MIKRON HSM 400


Max. Work piece Dimensions
X x Y x Z ( 600 x 500 x 300 ) mm
Travel
X x Y x Z ( 400 x 450 x 350 ) mm
Accuracy
Mean positional variation = 0.003 mm

Resolution = 0.001 mm
Spindle Speed
42,000 RPM
No. of Unit
2
Machine Model
Machine Detail
DMC 64V LINEAR DECKEL MAHO
Max. Work piece Dimensions
X x Y x Z ( 640 x 600 x 500 ) mm
Travel
X x Y ( 600 x 550 ) mm
Accuracy
Mean positional variation = 0.005 mm

Resolution = 0.001 mm
Spindle Speed
12,000 RPM
Machine Model
Machine Detail

AGIE EVOLUTION+F
Max. Work piece Dimensions
X x Y x Z ( 800 x 500 x 250 ) mm
Travel
X x Y x Z ( 350 x 240 x 250 ) mm
Accuracy
Mean positional variation = 0.003 mm

Resolution = 0.001 mm
Wire Diameter
0.03 to 0.33 mm
Machine Model
Machine Detail
AGIE 100 D+F
Max. Work piece Dimensions
X x Y x Z ( 800 x 500 x 250 ) mm
Travel
X x Y x Z ( 300 x 200 x 250 ) mm
Accuracy
Mean positional variation = 0.003 mm

Resolution = 0.001 mm
Wire Diameter
0.03 to 0.33 mm
Machine Model
Machine Detail
OKAMOTO GRIND-X
Surface Grinder
Max. Work piece Dimensions
X x Y ( 150 x 400 ) mm
Travel
X x Y ( 150 x 400 ) mm
Accuracy
Mean positional variation = 0.001 mm

Resolution = 0.001 mm
Machine Model
Machine Detail
CHEVALIER
(FSG-1224ADTT)
Max. Work piece Dimensions
X x Y ( 305 x 610 ) mm
Travel
X x Y ( 305 x 610 ) mm

Accuracy
+- 20m
Machine Model
Machine Detail
Rambo Turret Milling Machine
Max. Work piece Dimensions
X x Y x Z ( 600 x 450 x 160 ) mm
Travel
X x Y x Z ( 250 x 160 x 250 ) mm
Other Machines and equipments

Deckel (FPM4) Conventional Milling machine
Dynamac-edm / Superdrill
Precision Measuring Microscope
Resharpening machine(Apollo 13)
Sand Blast Machine
Sawing machine
Shrink pack machine
Tesa surface roughness tester
Universal cutter grinder
Broaching Machine
